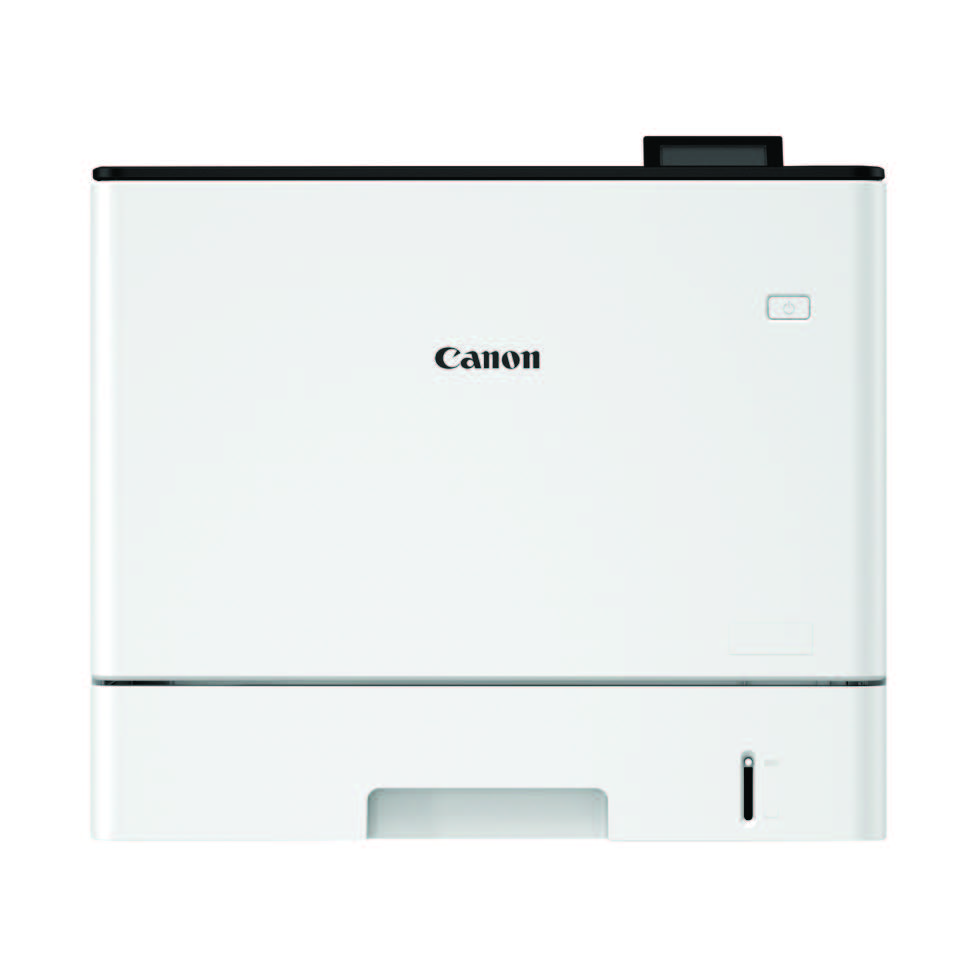

Canon i-SENSYS X C1538P II

Specifications in detail

General Specifications

• Machine Type
  Colour laser single function
• Available Functions
  Print

Print Specifications

• Print Speed

  Single sided:Up to 38 ppm (A4)

                          Up to 59 ppm (A5-Landscape)
  Double sided: Up to 38 ipm (A4) from Cassette, 21ipm (A4) from Multi Purpose Tray
• Printing Method
  Colour laser beam printing
• Print Resolution
  Up to 1200 x 1200 dpi
• Warm-up Time
  Print ready message shown:
  Approx. 2 seconds or less from power on
• First-Print-Out Time
  Colour: approx. 6.3 seconds
  Mono: approx. 5.3 seconds
• Printer Languages
  UFRII (Ultra Fast Rendering), PCL5c¹, PCL6, Adobe^® PostScript3
• Fonts
  93 PCL fonts (93 Roman, 10 Bitmap fonts, 2 OCR fonts)
  Andalé Mono WT J/K/S/T (Japanese, Korean, Simplified and Traditional Chinese)*²
  Barcode Fonts*³
  136 PostScript fonts
• Print Margins
  4 mm-top, bottom, left and right
• Advanced Printing Features
  Encrypted Secure Print
  Secure Print
  Print from USB memory key (JPEG/TIFF/PDF/XPS)
  Barcode Print⁴
  iOS: AirPrint, Canon PRINT Business app
  Android: Mopria certified, Canon Print Service Plug-in, Canon PRINT Business app
  Microsoft Universal Print

Media Handling

• Paper Input (Standard)
  550-sheet cassette
  100-sheet multi-purpose tray
• Paper Input (Option)
  550-sheet cassette x 3 (Paper Feeder PF-D1)
  550-sheet cassette (Cassette Feeding Unit-AV1)
• Maximum Paper Input Capacity
  2,300-sheets
• Paper Output
  200-sheet
• Media Types
  Multi-Purpose Tray: Plain paper, Recycled paper, Heavy Paper, Thin paper, Colour paper, Coated paper, Pre-punched, Post card, Envelope
  Cassette: Plain paper, Recycled paper, Heavy Paper, Thin paper, Label, Colour paper, Coated paper, Pre-punched
• Media Sizes
  Cassette (Standard):
  A4, A5, A5 (Landscape), A6, B5, B6, Letter, Executive, Statement, GLTR, 16K, Custom sizes: Min. 101.6 x 148 mm Max. 216.0 x 297 mm.Multi-purpose tray:
  A4, A5, A5 (Landscape), A6, B5, B6, Legal, Letter, Executive, Statement, OFFICIO, B-OFFICIO, M-OFFICIO, GLTR, ILGL, GLGL, Foolscap, 16K, Post card, Envelop (COM10, Monarch, C5, DL), Custom sizes: Min. 76.2 x 127 mm Max. 216.0 x 355.6 mm.Cassette (Optional):
  A4, A5, A5 (Landscape), A6, B5, B6, Legal, Letter, Executive, Statement, GLTR, ILGL, GLGL, Foolscap, F4A, 16K, Custom sizes: Min. 101.6 x 148 mm Max. 216.0 x 355.6 mm
• Media Weights
  Cassette (standard and optional): 60 to 163 g/m²
  Multi-purpose tray: 60 to 216 g/m²
• Double Sided Printing
  Automatic
  Cassette:
  A4, A5, B5, Legal, Letter, Executive, OFFICIO, B-OFFICIO, M-OFFICIO, GLTR, ILGL, GLGL, Foolscap, F4A, 16K
  Custom size – Min. 148 x 210 mm Max. 216 x 355.6 mm
  60 to 163 g/m²

Interface & Software

• Interface Type
  USB 2.0 Hi-Speed, 10BASE-T/100BASE-TX/1000Base-T, Wireless 802.11b/g/n, Wireless Direct Connection
• Operating System Compatibility
  Windows^® 11/ Windows^® 10 / Server^® 2022 / Server^® 2019 / Server^® 2016 /
  Mac OS X version 10.13 & up
  Linux⁵/Citrix
• Network Protocol
  Print:
  TCP/IP (LPD/Port9100/IPP/IPPS/FTP/WSD)Management:
  SNMPv1, SNMPv3 (IPv4,IPv6)Security: TLS1.3, IPSec, IP/Mac address filtering, IEEE802.1X (LAN/WLAN), SNMPv3, SSL (HTTPS, IPPS), Dual Network Support
  Security (wireless):
  Infrastructure Mode:
  WEP(64/128 bit), WPA-PSK(TKIP/AES), WPA2-PSK(TKIP/AES), WPA3-SAE (AES), WPA-EAP (AES), WPA2-EAP (AES), WPA3-EAP (AES)
  Access Point Mode:
  WPA2-PSK(AES)
  Wi-Fi Direct Mode:
  WPA2-PSK (AES)
• Software and Printer Management
  Remote User Interface (RUI),
  Remote Operation Viewer,
  Department ID Management,
  Toner Status Tool,
  iW Enterprise Management Console: Server-based software for centralised management of a fleet of devices
  eMaintenance: embedded RDS allows remote eMaintenance services such as meter capture, automatic consumables management and remote diagnostics.
  Content Delivery System: Server platform enables automatic firmware update to the device.
  uniFLOW online / uniFLOW online Express / uniFLOW compatibility

General Features

• Recommended Monthly Print Volume
  1,500 – 5,000 pages per month
• Duty Cycle
  50,000 pages
• Processor Speed
  1.6GHz x 2
• Memory
  2GB
• Storage
  32GB eMMC (available space 15GB)
• Control Panel
  5 Line LCD, 5 LED (Online, Ready, Message, Job and Energy saver), Buttons, 10-key numeric keypad
• Dimensions with Trays (W x D x H)
  458 mm x 464 mm x 388 mm
• Weight
  Approx. 25 kg
• Operating Environment
  Temperature: 10 to 30ºC (50 to 86ºF)
  Humidity 20 to 80% RH (no condensation)
• Power Source
  220-240V (±10%)  50/60Hz (±2Hz)
• Power Consumption
  Maximum: Approx. 1500W or less
  Active: Approx. 640W or less
  Standby: Approx. 30.1W or less
  Sleep: Approx. 0.9W or less
  Typical Electricity Consumption (TEC): 0.39kWh/week
  For detailed information relating to Lot26 regulation, please go to:
  http://www.canon-europe.com/For_Work/Lot26/index.aspx
• Noise Levels

  Sound power

  Active:	Simplex 65 dB or less (BW) / 66 dB or less (CL)
  	Duplex 67 dB or less (BW) / 68 dB or less (CL)

  Standby: 48 dB or less

  Sound pressure

  Active:	Simplex 50 dB or less (BW) / 51 dB or less (CL)
  	Duplex 52 dB or less (BW) / 52 dB or less (CL)

  Standby: 33 dB or less

Consumables

• Cartridges
  TONER T10 Black (13,000 pages)
  TONER T10 Cyan (10,000 pages)
  TONER T10 Magenta (10,000 pages¹¹)
  TONER T10 Yellow (10,000 pages¹²)
  TONER T10L Black (6,000 pages¹³)
  TONER T10L Cyan (5,000 pages¹⁴)
  TONER T10L Magenta (5,000 pages¹⁵)
  TONER T10L Yellow (5,000 pages¹⁶)

What is in the Box

• A4 CL SFP: Print
• Print Speed(CL/BW): 38/38ppm
• Reader: N/A
• Feeder: Standard
• Standard Cassette: 1
• Starndard Output: Included in Main Unit
• Standard PDL: UFR II, PCL 6, Adobe PS
• Standard HDD: No’ (32GB eMMC/available space 15GB)
• Standard Memory: 2.0GB RAM
• Network Interface: Wi-Fi,Ethernet, USB
• NFC: No
• CRG included: No
• Warranty included: No
