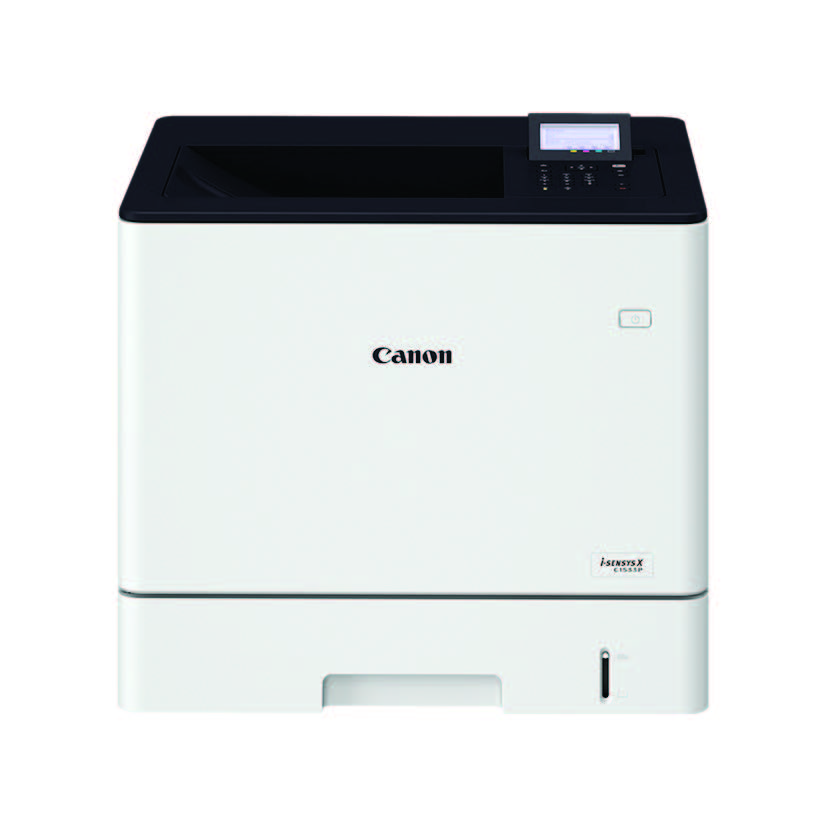

Canon i-SENSYS X C1533P II

Specifications in detail

General Specifications

• Machine Type
  Colour laser single function
• Available Functions
  Print

Print Specifications

• Print Speed
  i-SENSYS X C1533P: 33ppm
  i-SENSYS X C1538P: 38ppm
• Printing Method
  Colour laser beam printing
• Print Resolution
  Up to 1200 x 1200 dpi
• Warm-up Time
  Print ready message shown:
  Approx. 2 seconds or less from power on
• First-Print-Out Time
  Colour: approx. 6.3 seconds
  Mono: approx. 5.3 seconds
• Printer Languages

  UFRII (Ultra Fast Rendering), PCL5c*, PCL6, Adobe® PostScript3

  * A Canon PCL5c driver is not supplied, however PCL5c commands are supported on the device.

• Fonts
  93 PCL fonts (93 Roman, 10 Bitmap fonts, 2 OCR fonts)
  Andalé Mono WT J/K/S/T (Japanese, Korean, Simplified and Traditional Chinese)*
  Barcode Fonts**
  136 PostScript fonts* Accessory – PCL FONT SET-A1E – is required
  ** Accessory – Barcode Printing Kit-D1 – is required
• Print Margins
  4 mm-top, bottom, left and right
• Toner Saver Mode
  YES
• Advanced Printing Features
  Secure Print
  Print from USB memory key (JPEG/TIFF/PDF/XPS)
  Barcode Print*
  iOS: AirPrint, Canon PRINT Business app
  Android: Mopria certified, Canon Print Service Plug-in, Canon PRINT Business app
  Microsoft Universal Print* Accessory – Barcode Printing Kit-D1 – is required

Media Handling

• Paper Input (Standard)
  550-sheet cassette
  100-sheet multi-purpose tray
• Paper Input (Option)
  550-sheet cassette x 3 (Paper Feeder PF-D1)
  550-sheet cassette (Cassette Feeding Unit-AV1)
• Maximum Paper Input Capacity
  Up to 2,300 sheets
• Paper Output
  200-sheet face down
• Media Types
  Multi-Purpose Tray: Plain paper, Recycled paper, Heavy Paper, Thin paper, Colour paper, Coated paper, Pre-punched, Post card, Envelope
  Cassette: Plain paper, Recycled paper, Heavy Paper, Thin paper, Label, Colour paper, Coated paper, Pre-punched
• Media Sizes
  Cassette (Standard):
  A4, A5, A5 (Landscape), A6, B5, Letter, Executive, Statement, GLTR, 16K, Custom sizes: Min. 101.6 x 148 mm Max. 216.0 x 297 mm.Multi-purpose tray:
  A4, A5, A5 (Landscape), A6, B5, Legal, Letter, Executive, Statement, OFFICIO, B-OFFICIO, M-OFFICIO, GLTR, ILGL, GLGL, Foolscap, 16K, Post card, Envelop (COM10, Monarch, C5, DL), Custom sizes: Min. 76.2 x 127 mm Max. 216.0 x 355.6 mm.Cassette (Optional):
  A4, A5, A5 (Landscape), A6, B5, Legal, Letter, Executive, Statement, GLTR, ILGL, GLGL, Foolscap, F4A, 16K, Custom sizes: Min. 101.6 x 148 mm Max. 216.0 x 355.6 mm
• Media Weights
  Cassette (standard and optional): 60 to 163 g/m²
  Multi-purpose tray: 60 to 216 g/m²
• Double Sided Printing
  Automatic
  Cassette:
  A4, A5, B5, Legal, Letter, Executive, OFFICIO, B-OFFICIO, M-OFFICIO, GLTR, ILGL, GLGL, Foolscap, F4A, 16K
  Custom size – Min. 148 x 210 mm Max. 216 x 355.6 mm
  60 to 163 g/m²

Interface & Software

• Interface Type
  USB 2.0 High-Speed, 10BASE-T/100 BASE-TX/1000BASE-T
  Wireless 802.11b/g/n, Wireless Direct Connection
• Operating System Compatibility
  Windows® 10 / Windows® 8.1 /  Server® 2019 / Server® 2016 / Server® 2012R2 / Server® 2012 / Mac OS X version 10.11 & up
  Linux*/Citrix* Web distribution only. Driver will be available in 2H, 2021
• Network Protocol
  Print:
  TCP/IP (LPD/Port9100/IPP/IPPS/FTP/WSD)Management:
  SNMPv1, SNMPv3 (IPv4,IPv6)Security: TLS1.3, IPSec, IP/Mac address filtering, IEEE802.1X, SNMPv3, SSL (HTTPS, IPPS), Dual Network Support
  Security (wireless):
  Infrastructure Mode: WEP (64/128 bit), WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES), WPA-EAP (AES), WPA2-EAP (AES)
  Access Point Mode: WPA2-PSK (AES)
  Wi-Fi Direct Mode: WPA2-PSK (AES)
• Software and Printer Management
  Remote User Interface (RUI),
  Department ID Management,
  Toner Status Tool,
  iW Enterprise Management Console: Server-based software for centralised management of a fleet of devices
  eMaintenance: embedded RDS allows remote eMaintenance services such as meter capture, automatic consumables management and remote diagnostics.
  Content Delivery System: Server platform enables automatic firmware update to the device.

General Features

• Recommended Monthly Print Volume
  i-SENSYS X C1533P: 1,000 – 5,000 pages per month
  i-SENSYS X C1538P: 1,500 – 5,000 pages per month
• Duty Cycle
  i-SENSYS X C1533P: 40,000 pages
  i-SENSYS X C1538P: 50,000 pages
• Processor Speed
  1GHz x 2
• Memory
  2GB
• Storage
  32GB eMMC (available space 15GB)
• Control Panel
  5 Line LCD, 5 LED (Online, Ready, Message, Job and Energy saver), Buttons, 10-key numeric keypad
• Dimensions with Trays (W x D x H)
  458 mm x 464 mm x 388 mm
• Weight
  Approx. 25 kg
• Operating Environment
  Temperature: 10 to 30ºC (50 to 86ºF)
  Humidity 20 to 80% RH (no condensation)
• Power Source
  220-240V (±10%)  50/60Hz (±2Hz)
• Power Consumption
  Maximum: Approx. 1500W or less
  Active:
  i-SENSYS X C1533P: Approx. 623W or less
  i-SENSYS X C1538P: Approx. 729W or less
  Standby: Approx. 34.4W or less
  Sleep: Approx. 1.1W or less
  Typical Electricity Consumption (TEC):
  i-SENSYS X C1533P: 0.41kWh/week*
  i-SENSYS X C1538P: 0.45kWh/week*
  For detailed information relating to Lot26 regulation, please go to: http://www.canon-europe.com/For_Work/Lot26/index.aspx* As per US ENERGY STAR® version3.0.
• Noise Levels
  i-SENSYS X C1533P:
  Sound power*
  Active: Simplex 65 dB or less (BW) / 65 dB or less (CL)
  Duplex 67 dB or less (BW) / 67 dB or less (CL)
  Standby: 48 dB or less
  Sound pressure*
  Active: Simplex 50 dB or less (BW) / 51 dB or less (CL)
  Duplex 52 dB or less (BW) / 52 dB or less (CL)
  Standby: 33 dB or lessi-SENSYS X C1533P:
  Sound power*
  Active: Simplex 65 dB or less (BW) / 66 dB or less (CL)
  Duplex 67 dB or less (BW) / 68 dB or less (CL)
  Standby: 48 dB or less
  Sound pressure*
  Active: Simplex 50 dB or less (BW) / 51 dB or less (CL)
  Duplex 52 dB or less (BW) / 52 dB or less (CL)
  Standby: 33 dB or less* Declared noise emission in accordance with ISO 9296

Consumables

• Cartridges
  TONER T10 Black (13,000 pages*)
  TONER T10 Cyan (10,000 pages*)
  TONER T10 Magenta (10,000 pages*)
  TONER T10 Yellow (10,000 pages*)
  TONER T10L Black (6,000 pages*)
  TONER T10L Cyan (5,000 pages*)
  TONER T10L Magenta (5,000 pages*)
  TONER T10L Yellow (5,000 pages*)* Based on ISO/IEC 19798

What is in the Box

• A4 CL SFP: Print
• Print Speed(CL/BW): 33/33ppm
• Reader: N/A
• Feeder: Standard
• Standard Cassette: 1
• Starndard Output: Included in Main Unit
• Standard PDL: UFR II, PCL 6, Adobe PS
• Standard HDD: No’ (32GB eMMC/available space 15GB)
• Standard Memory: 2.0GB RAM
• Network Interface: Wi-Fi,Ethernet, USB
• NFC: No
• CRG included: No
• Warranty included: No
