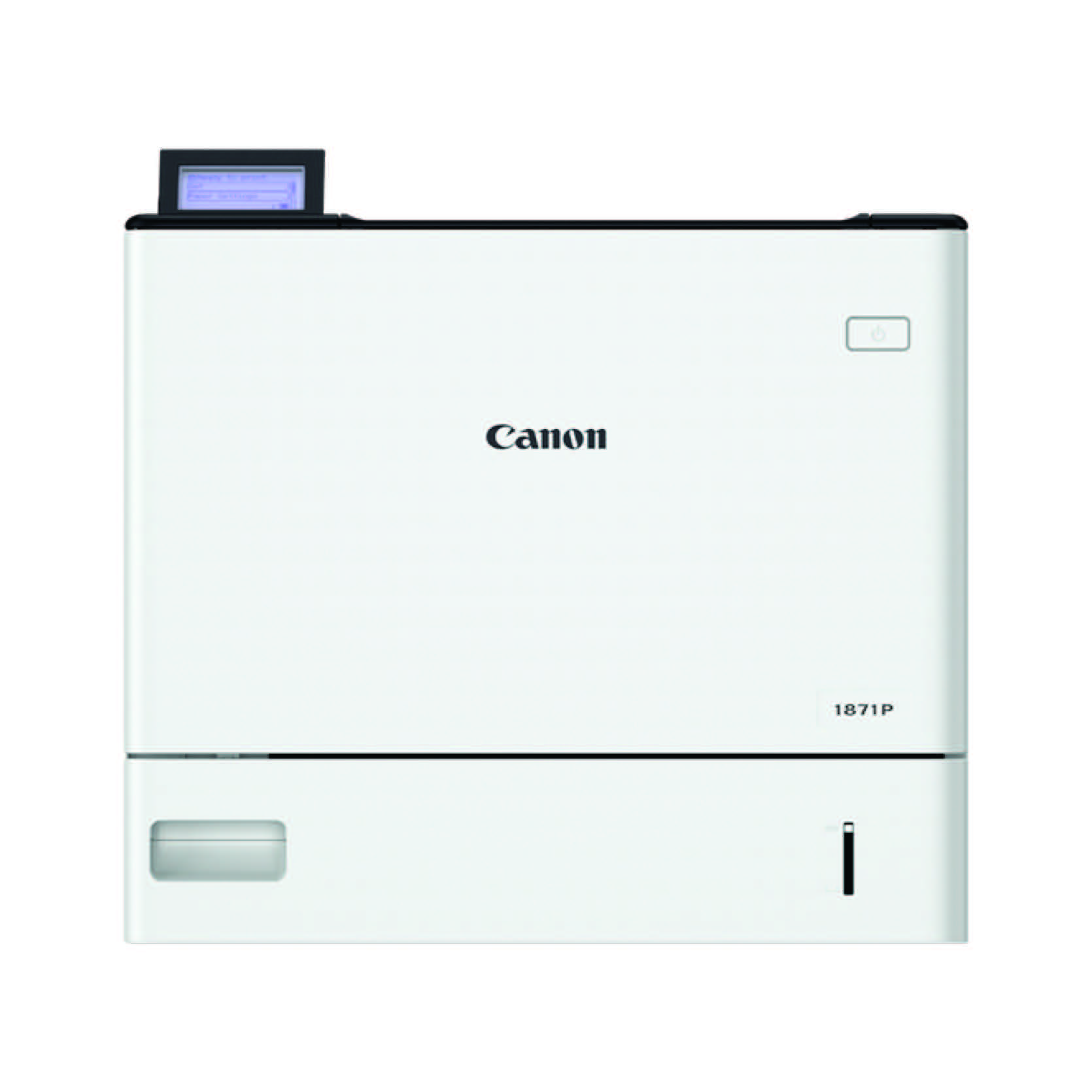

Canon i-SENSYS X 1871P

Specifications in detail

General Specifications

• Machine Type
  Laser Printer
• Available Functions
  Print

Print Specifications

• Print Speed
  71ppm
• Printing Method
  Monochrome laser beam printing
• Print Resolution
  Up to 1200 x 1200 dpi
• Warm-up Time
  Print ready message shown:
  Approx. 2 seconds or less from power on
• First-Print-Out Time
  Mono; approx. 4.9 seconds
• Printer Languages
  UFRII (Ultra Fast Rendering), PCL5e¹, PCL6, Adobe^® PostScript3
• Fonts
  93 PCL fonts (93 Roman, 10 Bitmap fonts, 2 OCR fonts)
  Andalé Mono WT J/K/S/T (Japanese, Korean, Simplified and Traditional Chinese)²
  Barcode Fonts³
• Print Margins
  5 mm-top, bottom, left and right
• Toner Saver Mode
  N/A
• Advanced Printing Features
  Secure Print
  Print from USB memory key (JPEG/TIFF/PDF/XPS)
  Barcode Print⁴
  iOS: AirPrint, Canon PRINT Business app
  Android; Mopria certified, Canon Print Service Plug-in, Canon PRINT Business app
  Microsoft Universal Print

Media Handling

• Scanner Type
  N/A
• Paper Input (Standard)
  550-sheet cassette
  100-sheet multi-purpose tray
• Paper Input (Option)
  550-sheet cassette x 4 (Paper Feeder PF-J1)
  2,000-sheet cassette (Paper Deck Unit PD-H1)
  75-sheet envelope cassetts (Envelope Feeder EF-B1)
• Maximum Paper Input Capacity
  4,300-sheets
• Paper Output
  500-sheet
• Media Types
  Multi-Purpose Tray: Plain paper, Recycled paper, Heavy Paper, Thin paper, Colour paper, Coated paper, Pre-punched, Letterhead, Post card, Envelope
  Cassette: Plain paper, Recycled paper, Heavy Paper, Thin paper, Label, Colour paper, Coated paper, Pre-punched, Letterhead
• Media Sizes
  Cassette (Standard):
  A4, A5, A5 (Landscape), A6, B5,B6, Legal, Letter, Executive, Statement, OFFICIO, B-OFFICIO, M-OFFICIO, GLTR, ILGL, GLGL, Foolscap, Custom sizes: Min. 99 x 148 mm  Max. 216.0 x 355.6 mm.Multi-purpose tray:
  A4, A5, A5 (Landscape), A6, B5, B6, Legal, Letter, Executive, Statement, OFFICIO, B-OFFICIO, M-OFFICIO, GLTR, ILGL, GLGL, Foolscap, Index. Envelope (COM10, No10, Monarch, C5, DL),Custom sizes: Min. 76.2 x 127 mm  Max. 216.0 x 355.6 mm.Cassette (Optional):
  A4, A5, A5 (Landscape), A6, B5,B6, Legal, Letter, Executive, Statement, OFFICIO, B-OFFICIO, M-OFFICIO, GLTR, ILGL, GLGL, Foolscap, Custom sizes: Min. 99 x 148 mm  Max. 216.0 x 355.6 mmEnvelope Feeder (Optional):
  Envelope (COM10, No10, Monarch, C5, DL)
• Media Weights
  Cassette (standard and optional): 60 to 135 g/m²
  Envelope Feeder (Optional): 80 to 100 g/m2
  Multi-purpose tray: 60 to 199 g/m²
• Double Sided Printing
  Automatic
  Cassette:
  A4, A5, B5, Legal, Letter, Executive, OFFICIO, B-OFFICIO, M-OFFICIO, GLTR, ILGL, GLGL, Foolscap, F4A, 16K
  Custom size – Min. 148 x 210 mm Max. 216 x 355.6 mm
  60 to 120 g/m2

Interface & Software

• Interface Type
  USB 2.0 Hi-Speed, 10BASE-T/100BASE-TX/1000Base-T, Wireless 802.11b/g/n, Wireless Direct Connection
• Operating System Compatibility
  Windows^® 11 / Windows^® 10 / Windows^® 8.1 / Server^® 2022 / Server^® 2019 / Server^® 2016 / Server^® 2012R2 / Server^® 2012 / Mac OS X version 10.12 & up Linux⁵
• Network Protocol
  Print:
  TCP/IP (LPD/Port9100/IPP/IPPS/FTP/WSD)Management:
  SNMPv1, SNMPv3 (IPv4,IPv6)Security: TLS1.3, IPSec, IP/Mac address filtering, IEEE802.1X, SNMPv3, SSL (HTTPS, IPPS), Dual Network Support
  Security (wireless):
  Infrastructure Mode:
  WEP(64/128 bit), WPA-PSK(TKIP/AES), WPA2-PSK(TKIP/AES), WPA3-SAE (AES), WPA-EAP (AES), WPA2-EAP (AES), WPA3-EAP (AES)
  Access Point Mode:
  WPA2-PSK(AES)
  Wi-Fi Direct Mode:
  WPA2-PSK (AES)
• Software and Printer Management
  Remote User Interface (RUI),
  Department ID Management,
  Toner Status Tool,
  iW Enterprise Management Console: Server-based software for centralised management of a fleet of devices
  eMaintenance: embedded RDS allows remote eMaintenance services such as meter capture, automatic consumables management and remote diagnostics.
  Content Delivery System: Server platform enables automatic firmware update to the device.
  uniFLOW online / uniFLOW online Express / uniFLOW compatibility

Software & Printer Management

• Tracking & Reporting
  N/A
• Remote Management Tools
  N/A
• Scanning Software
  N/A
• Optimisation Tools
  N/A
• Platform
  N/A
• Document Publishing
  N/A

General Features

• Recommended Monthly Print Volume
  4,000 – 20,000 pages per month
• Duty Cycle
  Max 450,000 pages⁶
• Processor Speed
  1.6GHz x 2
• Memory
  2GB
• Storage
  32GB eMMC (available space 15GB)
• Control Panel
  5 Line LCD, 5 LED (Online, Ready, Message, Job and Energy saver), Buttons, 10-key numeric keypad
• Dimensions with Trays (W x D x H)
  430 mm x 464 mm x 370 mm
• Installation Space (W x D x H)
  NA
• Weight
  20 kg
• Operating Environment
  Temperature: 10 to 30ºC (50 to 86ºF)
  Humidity 20 to 80% RH (no condensation)
• Power Source
  220-240V (±10%) 50/60Hz (±2Hz)
• Power Consumption
  Maximum: Approx. 1500W or less
  Active: Approx. 771.49W or less
  Standby: Approx. 13.69W or less
  Sleep: Approx. 1.0W or less
  Typical Electricity Consumption (TEC): (TEC) 0.73kWh/week
  For detailed information relating to Lot26 regulation, please go to:  http://www.canon-europe.com/For_Work/Lot26/index.aspx
• Noise Levels
  Sound power⁷
  Active: Simplex 70 dB or less
  Duplex 71 dB or less
  Standby: Inaudible⁸
  Sound pressure⁹
  Active: 55 dB or less
  Standby: Inaudible¹⁰

Consumables

• Cartridges
  TONER T15 Black (42,000 pages¹¹)

What is in the Box

• A4 BW SFP: Print
• Print Speed(CL/BW): 71ppm
• Reader: N/A
• Feeder: Standard
• Standard Cassette: 1
• Starndard Output: Included in Main Unit
• Standard PDL: UFR II, PCL 6, Adobe PS
• Storage: 32GB eMMC
• Standard Memory: 2.0GB RAM
• Network Interface: Wi-Fi,Ethernet, USB
• NFC: No
• CRG included: No
• Warranty included: No
